Sale!

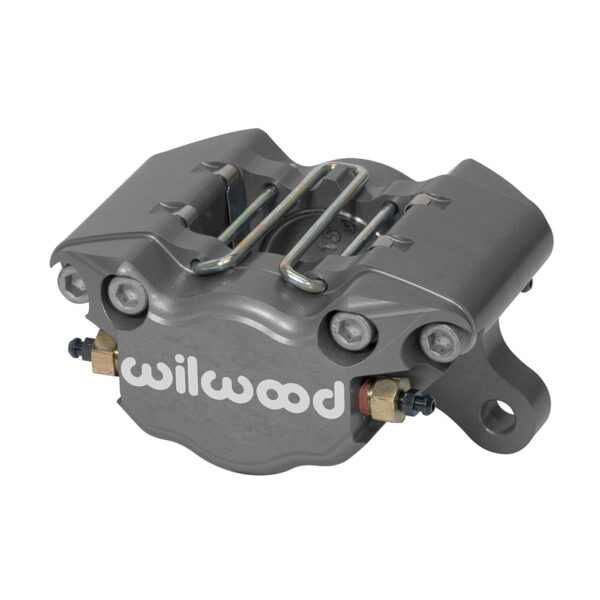

Wilwood Dynapro 2 Piston Brake Caliper

1 review

$137.89$245.39

-

Free Shipping $99+

Usually Ships Within 1 - 2 Business Days
SKU: 120-9689

Wilwood Dynapro 2 piston brake caliper

The Dynapro single DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best “Dyna” series calipers ever.

Calipers are fully CNC machined from premium grade alloy billet. The FEA-generated body design incorporates a fortified transition between the piston housings and the bridges. Strengthening this critical area has substantially increased its resistance to deflection and body separation under load. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel.

The DPS is loaded with exclusive Wilwood performance enhancements. The calipers feature quick-e-clip pad retainers that support a 6812 type brake pad from the top. In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single quick-clip pin and 7012 type pads used in the previous DLS models.

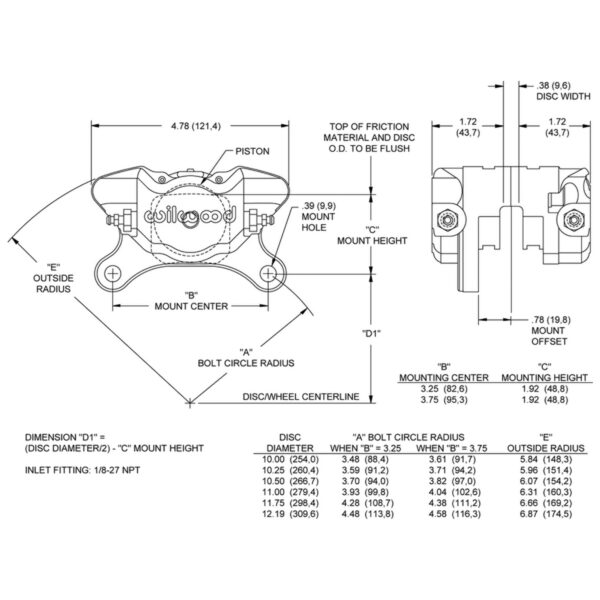

  • Long piston version
  • Inlet size: 1/8-27 NPT
  • Mounting holes: .39″ diameter |3.75″ on center
  • Rotor width: 0.15″ – .20″
  • Rotor diameter: 6″ – 13″
  • Piston size: 1.75″

PADS ARE NOT INCLUDED WITH THIS CALIPER AND MUST BE ORDERED SEPARATELY

Please select options to display fitment

Weight N/A
Dimensions N/A
Color/Finish

, ,

5.0
Based on 1 review
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
  1. Alan D.

    Priced right.

    (0) (0)
Add a review
