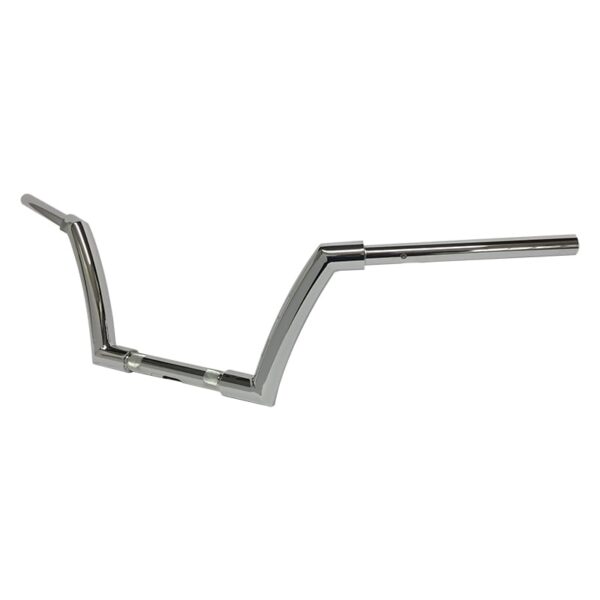

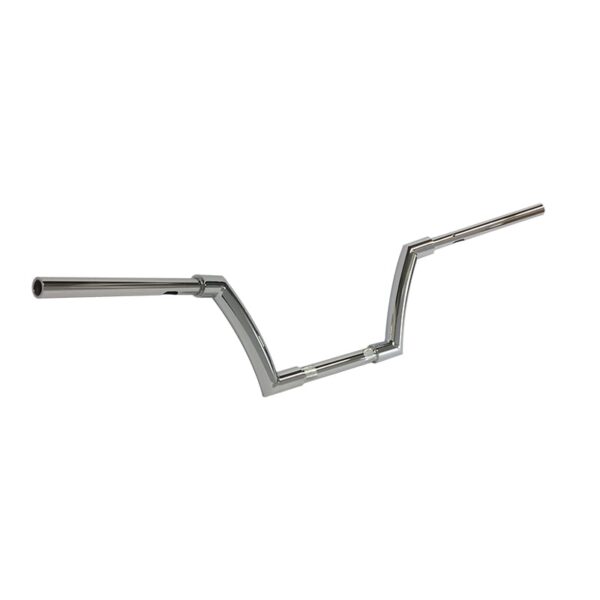

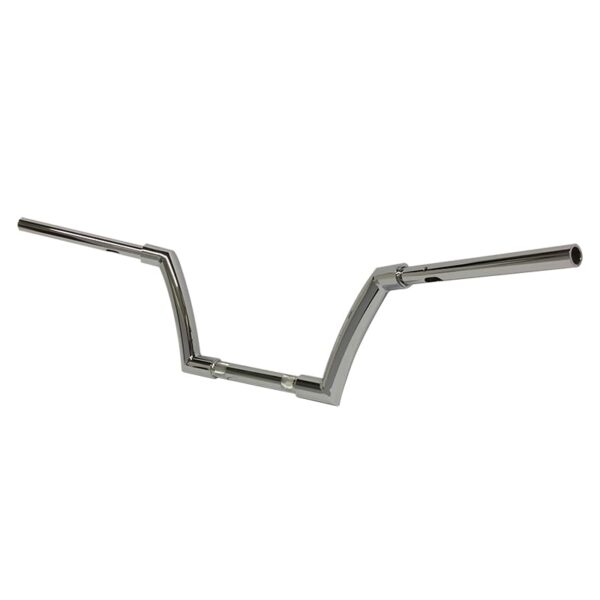

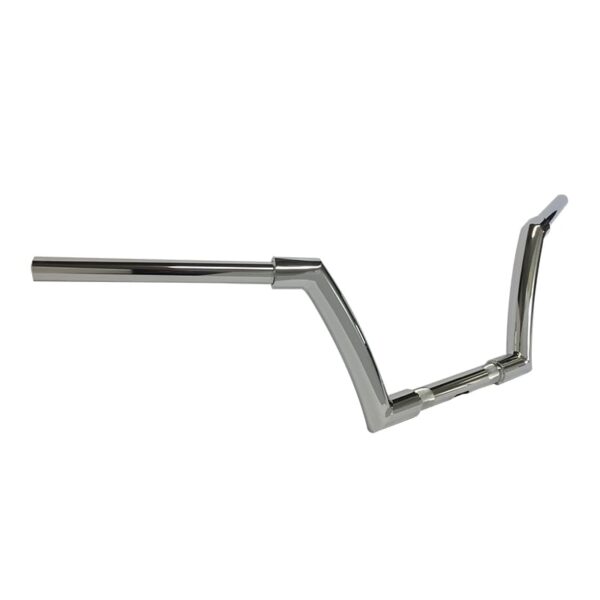

Twisted Choppers Vault Mitered Handlebars for Harley-Davidson

Twisted Choppers Vault Mitered Handlebars for Harley-Davidson

The Vault Mitered Handlebars from Twisted Choppers transform any build into a statement that demands a second look. The distinctive mitered profile sets the front end apart from anything catalog-standard, delivering a custom presence that reads as serious and intentional from every angle — built for riders who want their motorcycle to look as good as it performs.

Key Features

• Made in USA — fabricated in-house at Twisted Choppers
• Fits the broadest range of Harley-Davidson models — any telescopic-fork bike with standard 3-1/2 inch on-center riser bolt spacing and cable or first-generation TBW throttle controls
• Compatible with first-generation Throttle-By-Wire systems — fits Softail M8 2018–2024, Dyna FXDLS 2016–2017, and Road Glide FLTRX through 2023
• Compatible with traditional cable throttle controls — fits Evolution and Twin Cam models, all Dyna through 2017, XL Sportster through 2022, and Road Glide FLTR 1998–2009
• Not compatible with Springer front end models, second-generation TBW systems, or FLH Batwing fairing models
• Pre-slotted at grip section and clamping area for fully hidden internal wiring
• Stepped diameter — 1-1/4 inch main tube reduces to 1 inch at grips and center clamp
• Mitered ends deliver a clean, profile-fit custom appearance
• Fits standard Harley-Davidson hand controls without modification

Technical Specifications

• Main Tube Diameter: 1-1/4 inch
• Grip/Clamp Diameter: 1 inch (stepped down)
• Height: 8 inches
• Pullback: 7 inches
• Width: 31 inches
• Bottom Width: 11 inches
• Center Width: 5-1/4 inches (fits 3-1/2 inch riser spacing)
• Measurement Standard: All measurements taken with hand grip section parallel to the ground
• Finish Options: Black, Chrome
• Origin: Made in USA

Fitment Notes

• Universal fitment rule: fits any Harley-Davidson with telescopic forks, 3-1/2 inch on-center riser bolt spacing, and cable or first-generation TBW throttle controls — subject to the exclusions below
• Not compatible with Springer front end models — Springer geometry requires proprietary handlebar dimensions. Affected models include FXSTS Springer Softail 1988–2006, FLSTS Heritage Springer 1997–2003, FXSTSSE CVO Springer Softail 2007, and any pre-1984 Springer-equipped FL/FX models
• Not compatible with FLH Batwing fairing models — mitered angles interfere with fairing structure (Street Glide FLHX, Electra Glide FLHT, Ultra Limited FLHTK, and all related variants)
• Not compatible with 2025+ Softail or 2024+ Road Glide — second-generation TBW requires different handlebar hole drillings
• Not compatible with Revolution Max-powered Sportster models (RH1250S Sportster S, RH975 Nightster) — incompatible handlebar architecture
• The following Milwaukee-Eight Softail models and all Road Glide FLTRX years are equipped with 1-1/4 inch riser clamps and require a 1 inch to 1-1/4 inch adapter sleeve, available separately: Breakout FXBR/FXBRS, Fat Boy FLFB/FLFBS, Heritage Classic FLHC, Fat Bob FXFB/FXFBS
• Evolution and Twin Cam Softail owners should verify riser clamp diameter before ordering — some models may require the 1 inch to 1-1/4 inch adapter sleeve
• Owners of pre-1984 Big Twin models should verify riser bolt spacing is 3-1/2 inches on-center before ordering
• Extended brake lines or clutch cables may be required depending on model and existing line length
• Review the Fitment tab for complete model compatibility details
