Twisted Choppers 3/4 Inch Universal Motorcycle Axle Externally Threaded
Twisted Choppers 3/4 Inch Universal Motorcycle Axle Externally Threaded - Image 2
Twisted Choppers

Twisted Choppers 3/4 Inch Universal Motorcycle Axle Externally Threaded

5 reviews|2 answered questions

Price range: $131.95 through $139.95

-

Free Shipping $99+

Usually Ships Within 1 - 3 Business Days
SKU: UNIVERSAL-AXLE-MALE-3-4 Brand: Twisted Choppers

Twisted Choppers 3/4 Inch Universal Motorcycle Axle Externally Threaded

Building a custom rolling chassis means solving for variables that stock parts were never designed to handle. This axle gives builders the length options and adjustability to dial in wheel positioning across a wide range of frame widths — without the headache of sourcing one-off hardware or modifying off-the-shelf components.

Key Features
  • Universal design accommodates various custom frame widths and tire sizes
  • External thread configuration accepts spacers behind the nut to fine-tune wheel positioning
  • Includes 2 retaining clips and nuts — ready to install
  • Available in 5 overall lengths: 12″, 13″, 14″, 15″, and 16″
  • Made in the USA from 1144 stress-proof steel
Technical Specifications
  • Axle Diameter: 3/4″
  • Thread Type: Externally threaded (male)
  • Thread Size: 3/4-16
  • Thread Length: 1″
  • Nut Width Across Flats: 1.125″
  • Nut Width at Points: 1.295″
  • Nut Width: .545″
  • Nut Travel: .360″
  • Included Hardware: 2 retaining clips and nuts
  • Material: 1144 stress-proof steel
  • Origin: Made in the USA
Fitment Notes
  • SIZE IS THE OVERALL LENGTH INCLUDING THREADS — shaft length excluding threads is 2″ less than the selected size
  • Spacers can be used behind the nuts to accommodate various frame widths
  • Intended for custom motorcycle builds; verify frame width and required axle length before ordering
  • Review the Fitment tab for complete size specifications and length options
Available Lengths
Size refers to the overall axle length including threads. Shaft length (excluding threads) is 2" less than the overall length.
Overall Length (Including Threads) Shaft Length (Excluding Threads)
12" 10"
13" 11"
14" 12"
15" 13"
16" 14"
Weight N/A
Dimensions N/A
Size

, , , ,

4.6
Based on 5 reviews
5 star
80
80%
4 star
0%
3 star
20
20%
2 star
0%
1 star
0%

  1. Patrick Smith –

    Very clean looks, comes in lots of different configurations.

    (0) (0)

  2. Anthony Thomas –

    Worked perfectly

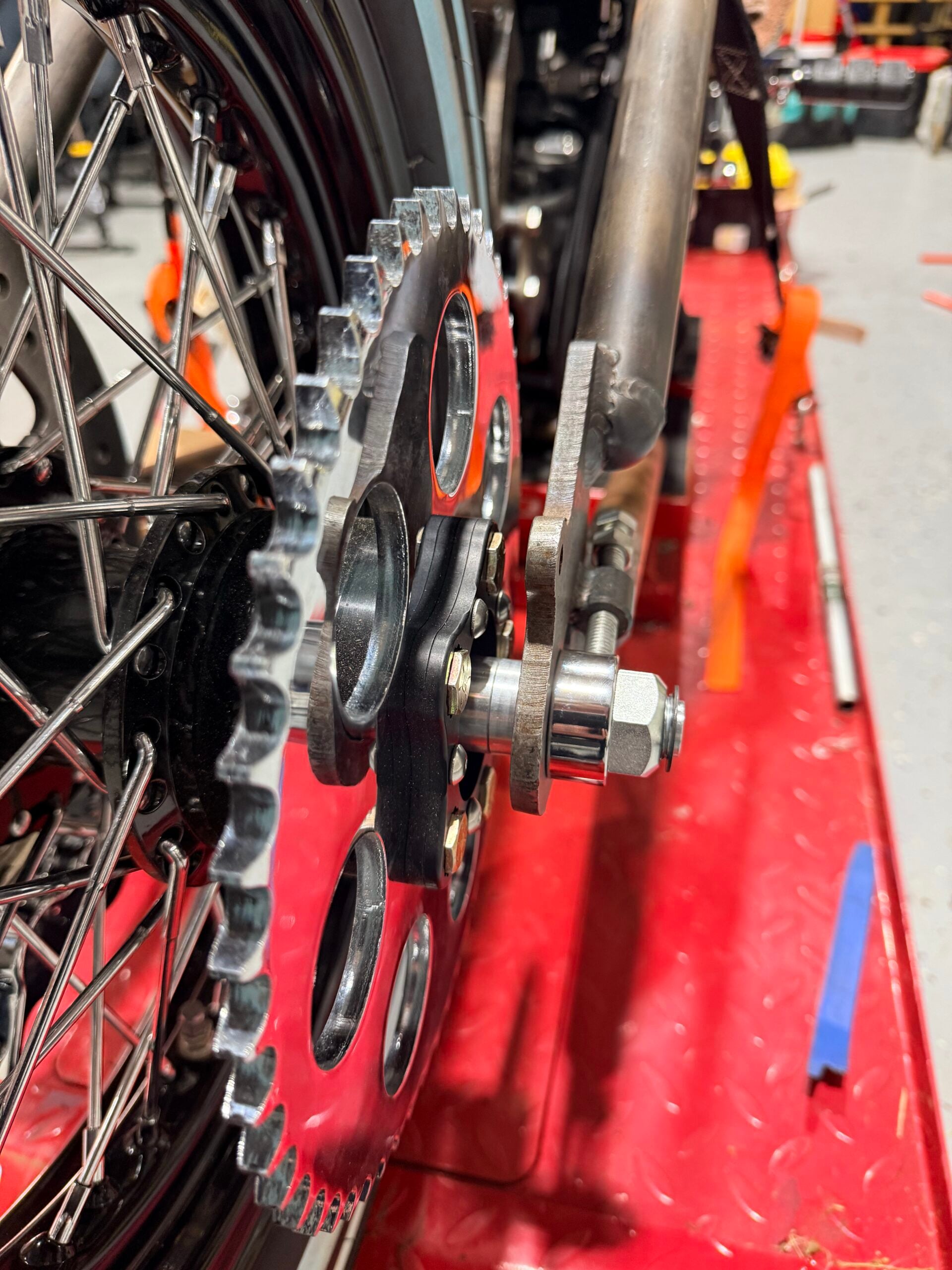

    Image #1 from Anthony Thomas
    (0) (0)

  3. chris h. –

    Axle was better quality and design than original

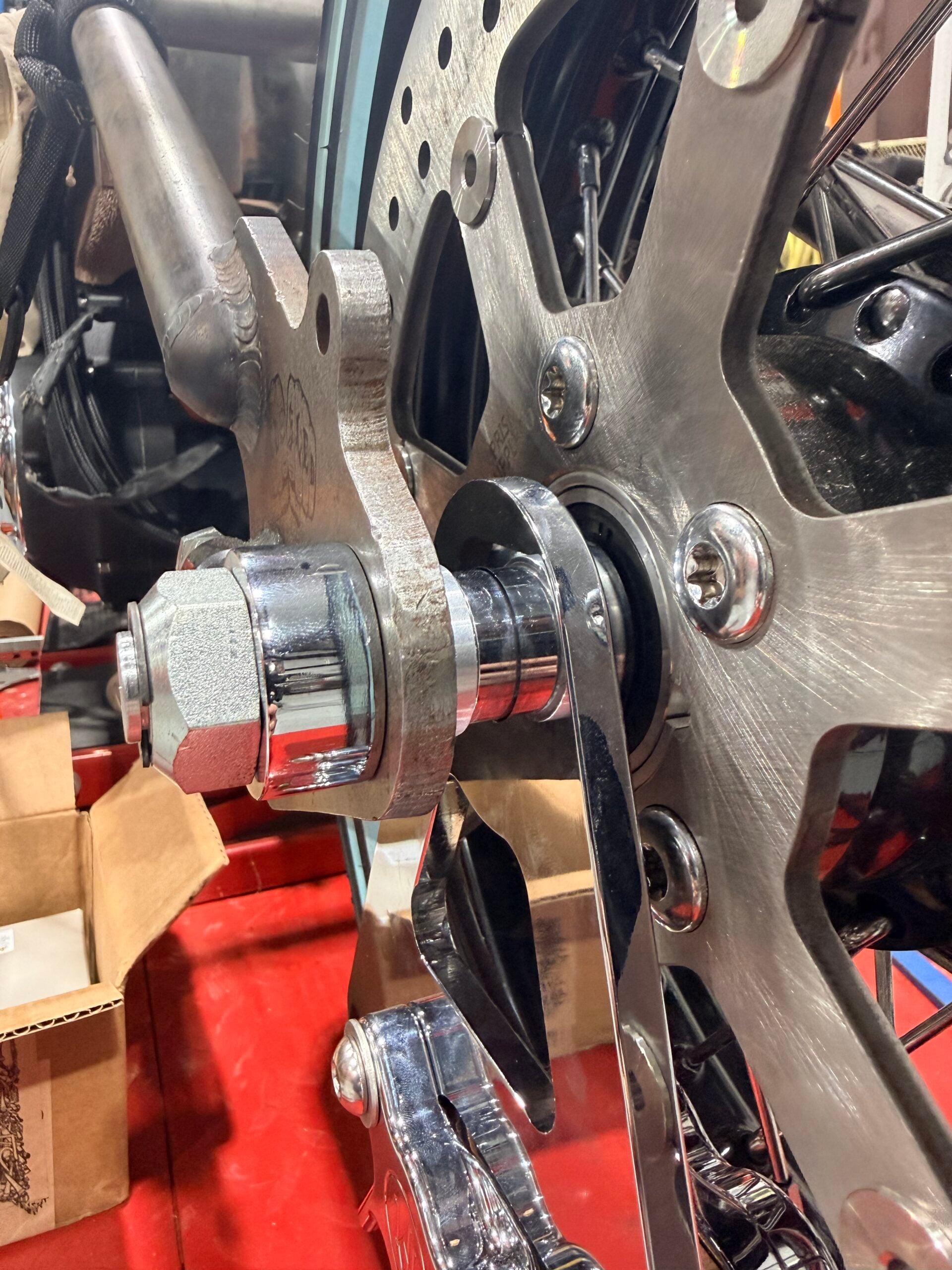

    Image #1 from chris h.
    (0) (0)

  4. Anonymous –

    Great!

    (0) (0)

  5. Tj Austin –

    This thing was not built correctly

    (0) (0)
Add a review

Your email address will not be published. Required fields are marked *

Q & A

Ask a question
If I want a 15" overall length axle (including threads), do I order a 15" or a 14" axle? Ted Budd asked on April 4, 2024

Each end has 1" of threading. The advertised size is the overall length meaning the unthreaded length is 2" shorter. You would order a 15" to meet your requirements.

 Joe Skinner answered on April 4, 2024 store manager
(0) (0)
Add an answer
Can This be used as a front axle if it measures correctly to replace springer acorn style axle? Tim asked on January 22, 2024

Yes, this can be used on the front or the back.

 Joe Skinner answered on January 22, 2024 store manager
(0) (0)
Add an answer
