Recoil Motorcycle Spring Seat Pan Shock Kit

3 reviews|2 answered questions

$159.95

-

Free Shipping $99+

Usually Ships Within 1 - 3 Business Days
SKU: TC-448 Brand: Twisted Choppers

Recoil Motorcycle Spring Seat Pan Shock Kit

  • This is a great kit to add suspension to your custom motorcycle
  • Rigid frames greatly benefit from this setup, which gives you some cushion over those rough roads
  • For use with Harley Davidson and custom motorcycles
  • Hand-shaped for a great fit
  • Spring compression only. Not a fluid-damping shock

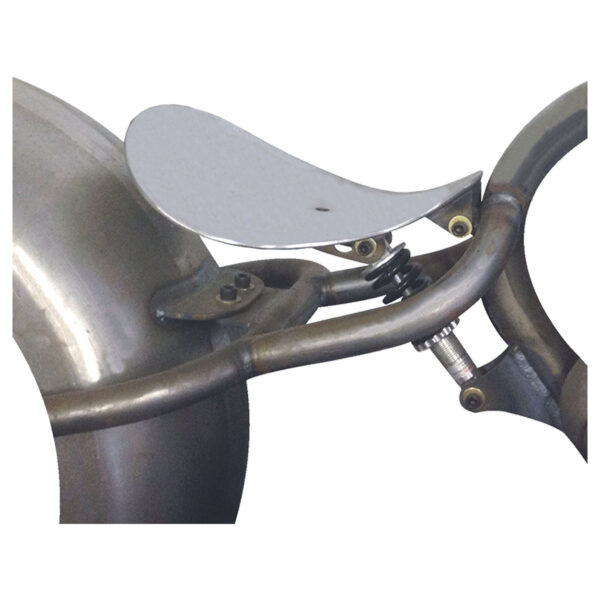

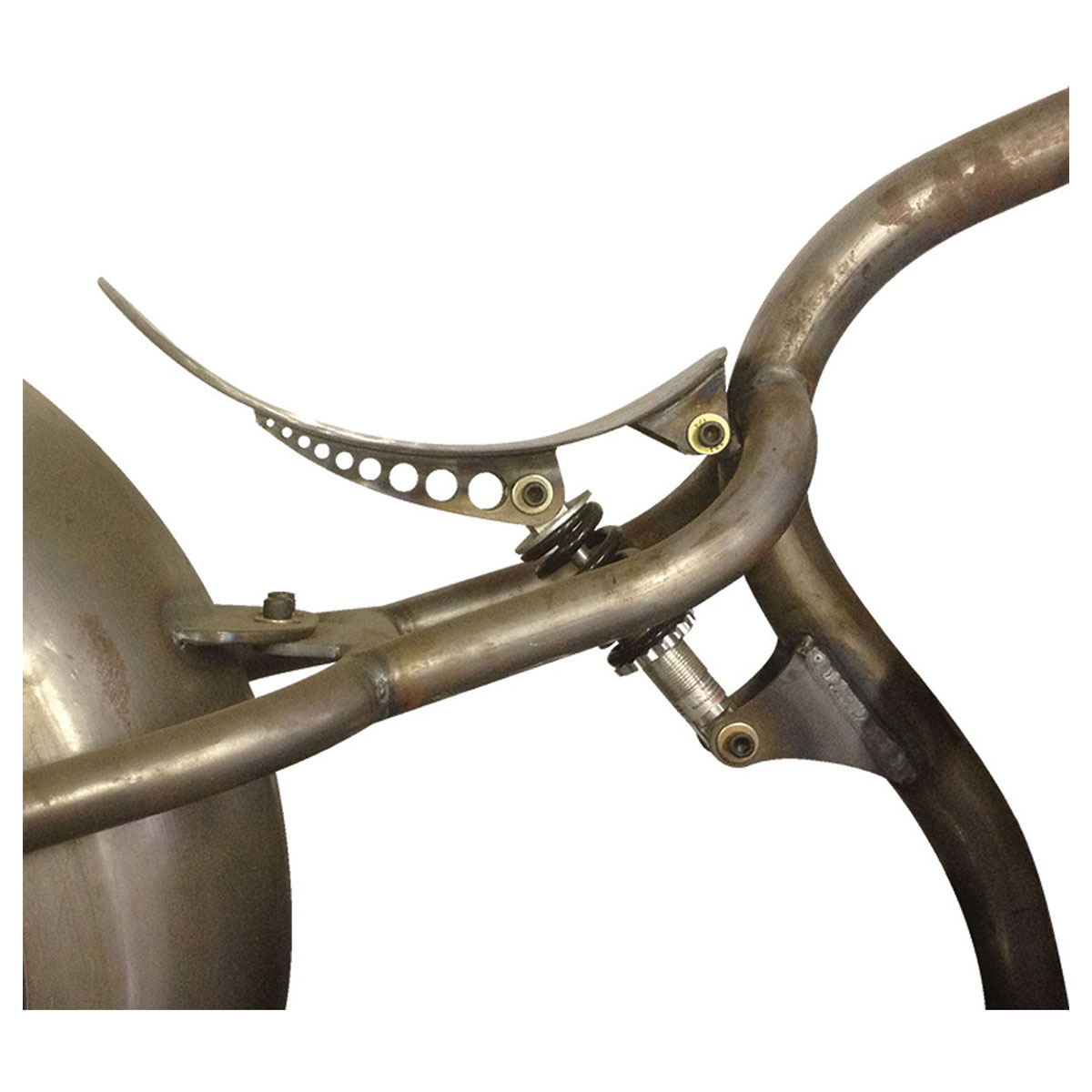

  • Mounting these in a vertical position towards the rear of the seat will result in a very stiff ride and nearly no spring travel. The closer to the center of the seat and at an angle of around 45 degrees will allow the spring to work properly.

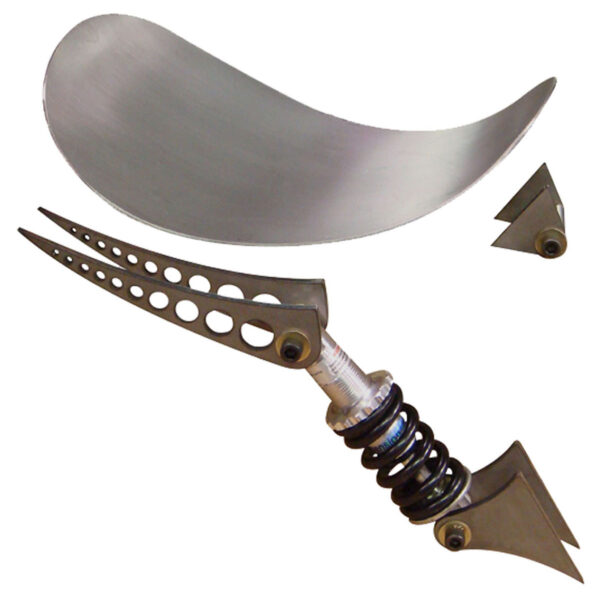

Kit includes the following:

  • 5″ Spring shock (TC-334)
  • Shock-frame mnts (TC-516)

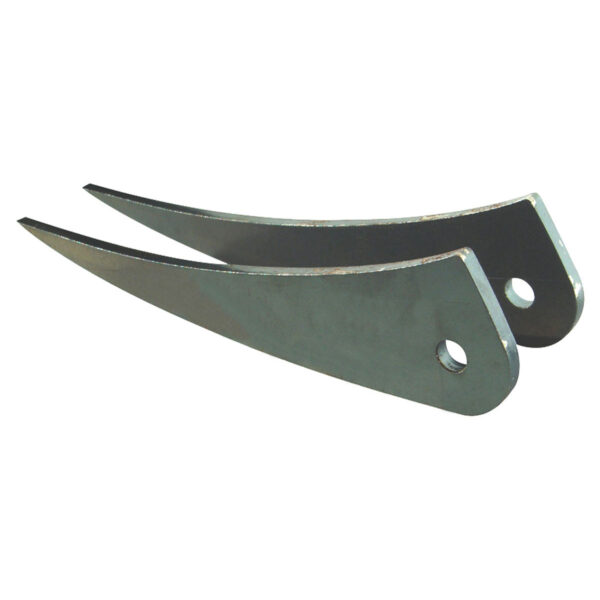

  • Shock-seat mnts (TC-517 w/o holes or TC-518 w/holes)
  • Seat hinge mounting tabs (TC-444)
  • Seat hinge (TC-443)
  • Mounting hardware

Seat pan options

  • Vintage pan: Length: 13.375″ | Width: 10.625″
  • Dropseat pan: Length: 11.375″ | Width: 10.625″

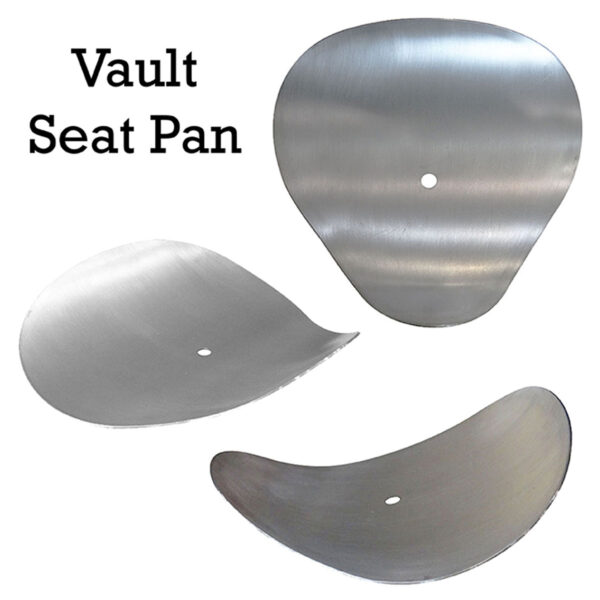

  • Vault pan: Length: 11.375″ | Width: 12.25″
  • Big boy pan: Length: 14.25″ | Width: 13″

Made in the USA

Please select options to display fitment

Weight N/A
Dimensions N/A
Seat Style

, , ,

Style

,

5.0
Based on 3 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

  1. Dean F. –

    Great Quality and works perfectly

    (0) (0)

  2. Bryce Pardue –

    Great product

    (0) (0)

  3. mike halvorsen –

    Perfect for the dropseat frame.

    (0) (0)
Add a review

Your email address will not be published. Required fields are marked *

Q & A

Ask a question
Does this work with the straight/ non-drop seat hard tail kit Tony asked on August 27, 2024

Yes, these can be set up to work with nearly any style frame.

 Joe Skinner answered on August 29, 2024 store manager
(0) (0)
Add an answer
What are the mesurments for each seat pan? Kyle asked on January 25, 2024

Please see the description for the seat pan dimensions.

 Joe Skinner answered on January 25, 2024 store manager
(1) (0)
Add an answer
