Mid-USA Hardbody Black Antique Vintage Style Springer Front End

Mid-USA Hardbody Black Antique Vintage Style Springer Front End

The Mid-USA Hardbody Black Antique Vintage Style springer recreates the narrow, old-school springer silhouette that defined early American custom builds. With its 0 degree rake top bracket and cast rocker assembly, it delivers an authentic vintage appearance on any custom frame.

Key Features

• Fully assembled with in-line top bracket – no built-in rake (0 degree rake)
• Cast rockers for authentic vintage springer look
• Universal brake rod mount on the right rear leg for disc brakes (5/8 inch hole)
• 1 inch OD steering stem designed for Timken taper roller bearings

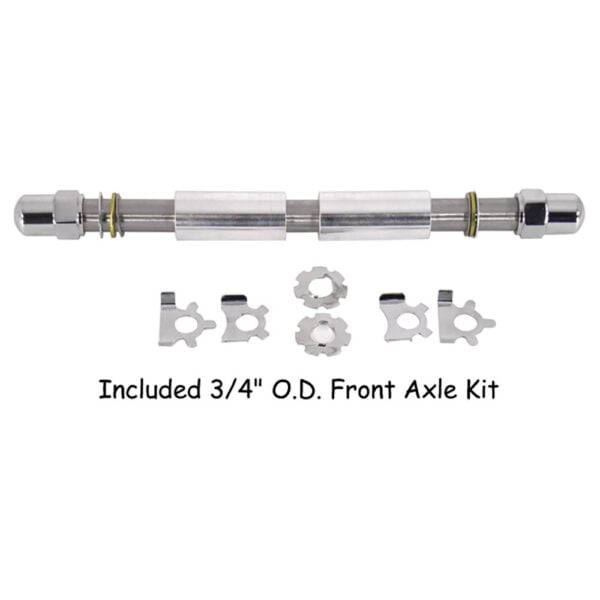

• 3/4 inch OD axle included
• Riser mounts on 4-3/4 inch centers, threaded 1/2-20
• Use Part 36652 neck cup conversion kit to install on K Model and Sportster 1952-1981

Technical Specifications

• Steering Stem OD: 1 inch
• Bearing Type: Timken taper roller
• Axle OD: 3/4 inch
• Rocker Spacing: 8-3/4 inches
• Riser Mount Centers: 4-3/4 inches
• Riser Thread: 1/2-20
• Standard Length: 22 inches (bottom of lower tree to axle center)
• Brake Mount: Universal right rear leg, 5/8 inch hole for disc brakes

Fitment Notes

• Designed for custom motorcycle builds – no specific motorcycle fitment applies
• For K Model and Sportster 1952-1981 installation, use Part 36652 neck cup conversion kit
• Riser mounts require 1/2-20 riser bolts
