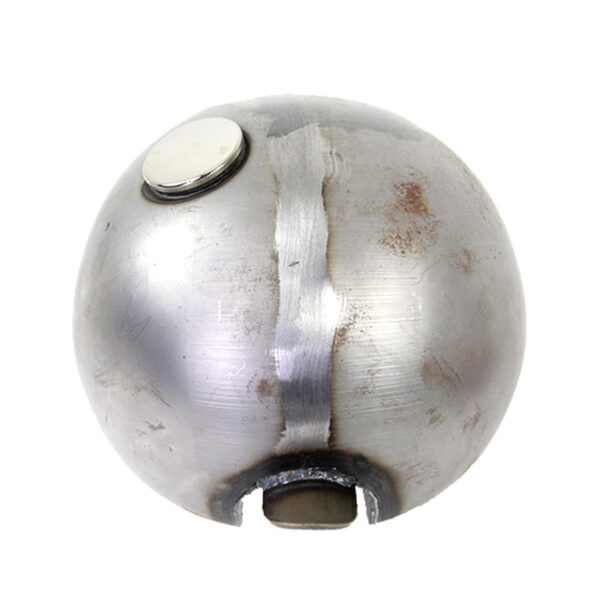

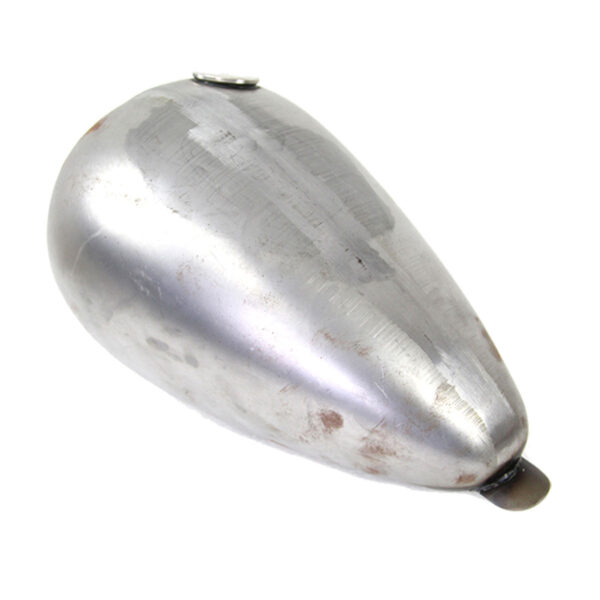

Chopper Axed 2.2 Gallon Gas Tank With Cap
- Petcock bungs: Left side 1/4″ NPT and Right side 3/8″ NPT
- Top length: 16-1/4″ | Bottom length: 14-3/4″
- Front width: 8″ |Rear width: 2-1/4″
- Front height: 7″ |Rear height: 2-1/4″
- Front tunnel height: 3″ | Rear tunnel height: 1-1/4″
- Tunnel length: 15-5/8″ | Tunnel width: 2-1/2″
- Mounting tabs on the front and rear (No holes)
- Bayonet-style gas cap
- Gas tanks are shipped raw and may have oxidation which must be sanded off before painting
Do not grind or sand the seams or joints. It is suggested to pressure test and use a tank sealer
