Built for the Weight of Modern Machines. Installing a set of wishbone springer forks on a rubber-mount Sportster (2004-2022) or Dyna (1991-2017) changes the entire attitude of the bike. But these are heavy, powerful machines—significantly heavier than the vintage rigid choppers these forks were originally designed for.

Don’t Risk It with Cheap Imports. Budget import springers are often made of mild steel and designed for lightweight bikes. Putting a cheap mild steel fork on a heavy Dyna or Rubber-Mount Sportster is a recipe for speed wobbles, flex, and structural failure. The Twisted Choppers Wide Wishbone Springer is engineered specifically to handle the weight, torque, and frame geometry of modern Harley chassis.

The Twisted Standard: USA-Made Custom Forks

In a market flooded with “modified” imports, it is vital to know exactly what you are paying for. Some brands claim “USA Made” while simply taking a cheap, mass-produced import springer, swapping out the front legs, and calling it their own. We believe you deserve better. We combine precision CNC machining with high-strength alloys to create custom forks that handle better, last longer, and keep you safe.

Precision CNC Machining – No Cast Import Cores

We do not use “donor” springers. With the exception of the springs and mounting hardware, we manufacture every single component of this front end in-house.

• The “Cast” Test: Look closely at other brands. If you see rough textures, soft rounded edges, or visible mold seams on the trees or rockers, you are likely looking at a cast steel import core.

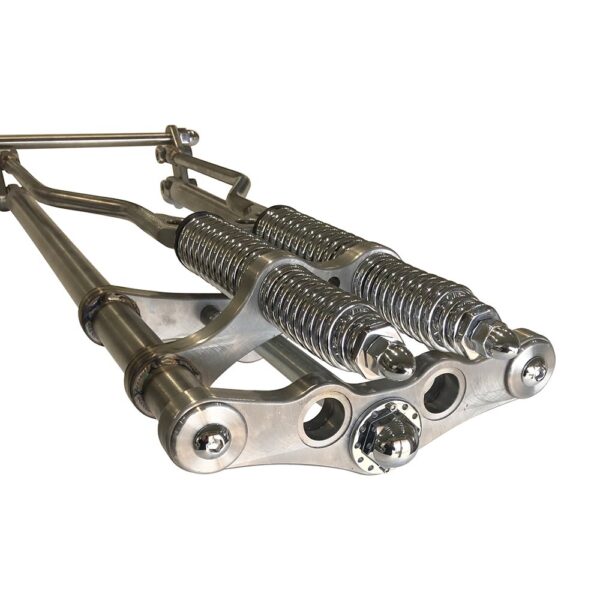

• The Twisted Difference: We CNC machine the Triple Trees, Rockers, Axles, Spring Rods, and Neck Pins directly from solid 1018 Cold Rolled Steel blocks. This ensures crisp edges, zero porosity, and exact bearing tolerances that cast parts cannot match.

4130 Chromoly Legs & Through-Tree Design

The weak point on many springer forks is where the rear leg meets the lower triple tree. Often, these are simply “butt-welded,” relying entirely on the weld for strength. We eliminate this risk.

• One-Piece Strength: Our rear legs are crafted from one continuous piece of 1-3/8″ OD 4130 Chromoly tubing that slides through the lower triple tree before being welded. This creates a mechanical lock with maximum shear strength.
• Superior Material: We use 4130 aircraft-grade alloy for both the front (3/4″) and rear legs because it is lighter and stronger than standard mild steel, providing natural vibration dampening and superior fatigue resistance.

Ride Quality & Specific Fitment Engineering

Standard springer forks will not fit these bikes because the factory downtubes interfere with the rear legs. We solved this.

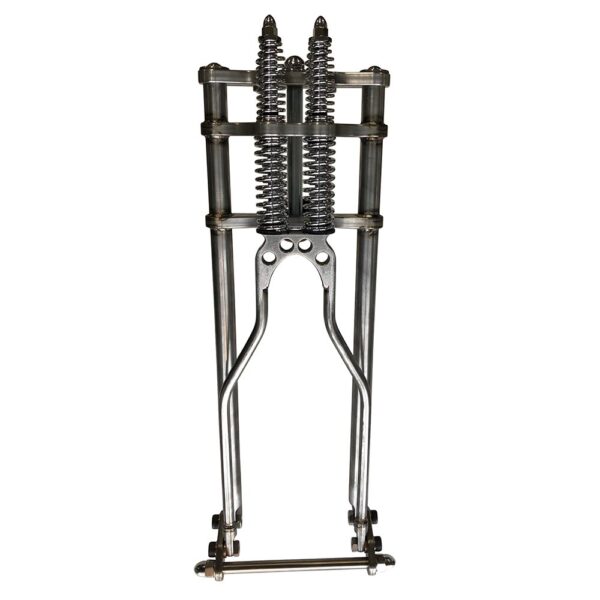

• Classic Wishbone Styling: Features curved front legs inspired by vintage chopper aesthetics, adding a custom, nostalgic look to the front end.

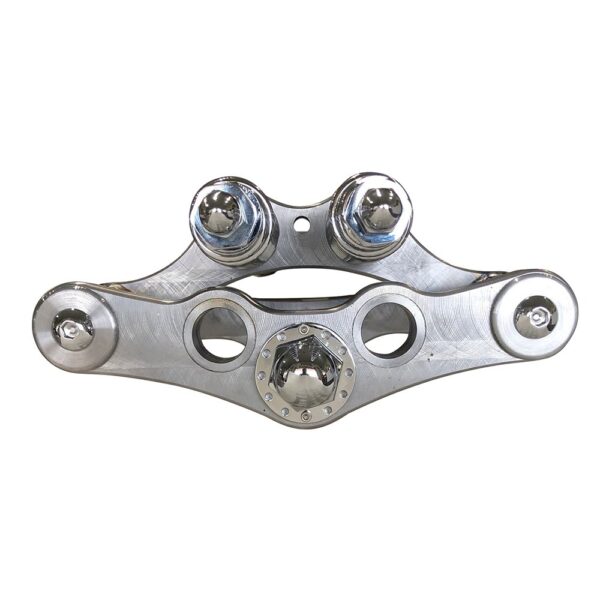

• Modified Tree Geometry: We machine the triple trees with specific offset and spacing to provide the necessary clearance for Sportster and Dyna frame downtubes, ensuring a bolt-on fit without frame modification.

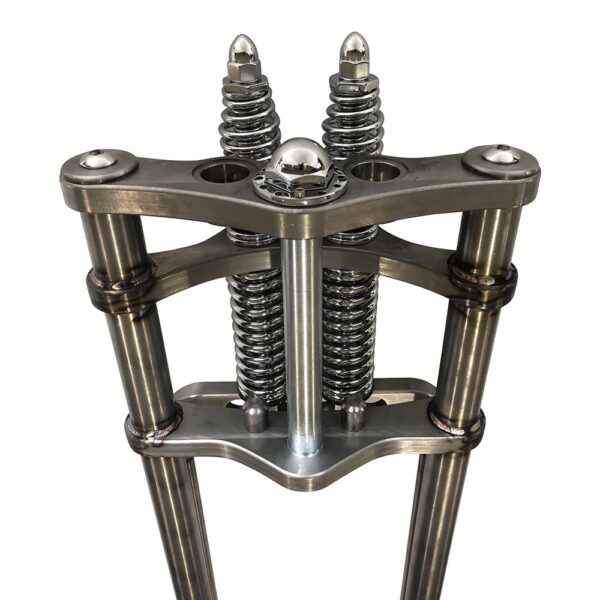

• Vibration Dampening: The top tree uses pinch bolts and is machined to accept OEM #56161-83A riser bushings (Not included). This isolates your hands from engine and road vibration.
• Clean Setup: The bottom tree is machined to accept an internal fork stop plate, allowing for a hidden turning radius stop on compatible frames.
• The “Wide” Stance: Designed for a “Wide” width, this front end offers the perfect aggressive stance—beefier than a narrow glide for maximum road presence.

Important Fitment Notes

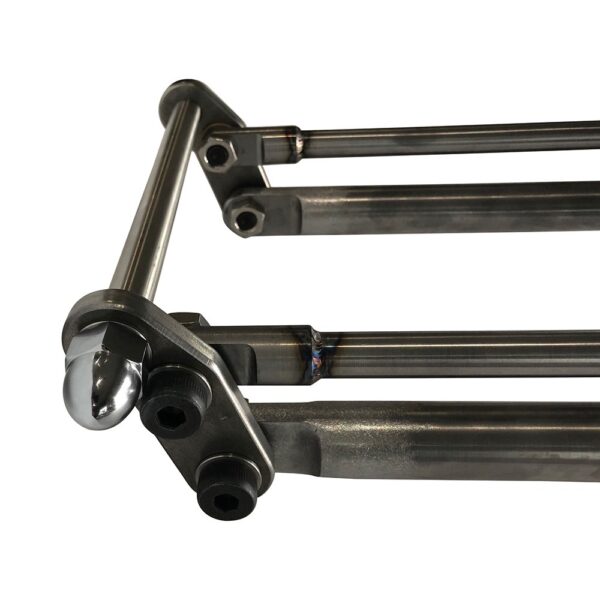

This unit is specifically designed for 2004-2022 Sportster and 1991-2017 Dyna frames. It includes a 3/4″ axle. Note on Axles: Most models from 2008+ use 25mm bearings. You will likely need to use axle reducer bushings (to adapt your stock wheel to our 3/4″ axle) or swap your wheel bearings to 3/4″ I.D. Please see the Fitment Tab for exact details.
