Twisted Choppers Custom Motorcycle Ignition Key Switch with Spring Return Start

Twisted Choppers Custom Motorcycle Ignition Key Switch with Spring Return Start

Upgrade your custom build’s starting ritual with a switch that operates with the same deliberate confidence as a factory ignition. No fumbling with toggles or pushbuttons — turn, hold, and release. Purpose-built for custom choppers, hot rods, and bespoke fabrications where clean operation matters as much as the craftsmanship surrounding it.

Key Features

• Spring return from Start to Run position — no manual key reset required after starting
• Three-position operation: Off, Run, and Start
• No separate starter relay required — solenoid terminal supports direct connection
• Marine-grade construction delivers superior corrosion resistance in harsh environments
• Inner seal between cylinder lock and contact plate prevents moisture intrusion
• Non-conductive housing eliminates risk of accidental shorts

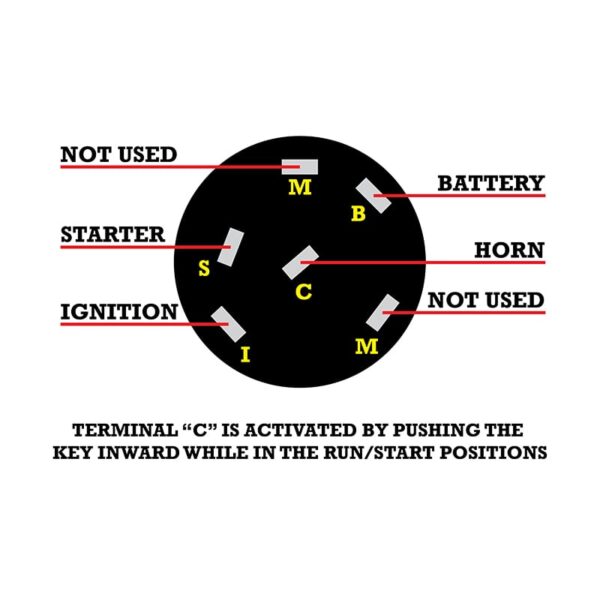

• 6 screw terminals for secure, straightforward wiring

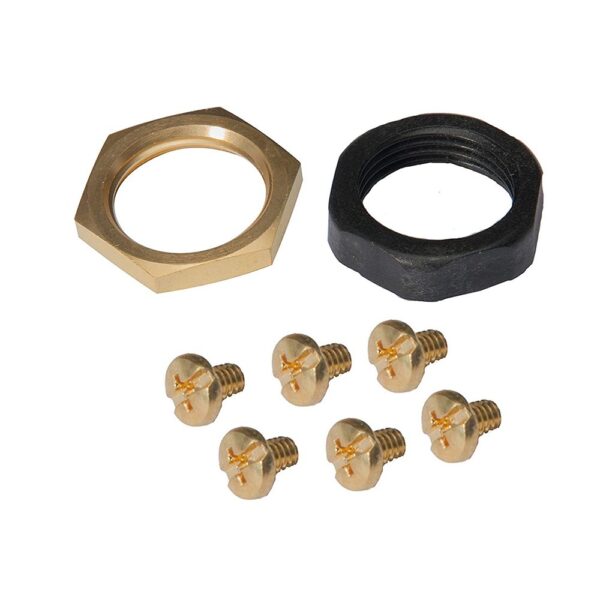

• Includes brass backup nut and hex black plastic face nut
• Includes two keys

Technical Specifications

• Material: Marine-grade glass-filled polyester
• Switch Positions: Off / Run / Start (spring return from Start)
• Terminal Type: 6 screw terminals
• Rated Ignition (I): 15 amp @ 12V DC
• Rated Solenoid (S): 30 amp @ 12V DC
• Rated Choke: 7 amp @ 12V DC
• Required Hole Size: 13/16″
• Maximum Panel Thickness: 5/8″
• Body Diameter: 1-1/2″
• Overall Length: 2-1/4″
• Back Up Nut: Brass
• Face Nut: Hex black plastic

Fitment Notes

• Universal fitment — no vehicle-specific year, make, or model restriction applies
• Compatible with custom motorcycles, choppers, hot rods, and any 12V DC application requiring a spring-return ignition switch
• Verify panel cutout diameter (13/16″) and panel thickness (5/8″ maximum) before installation
• No starter relay required when wiring directly to the solenoid (S) terminal
• Review the Fitment tab for any additional application guidance
