Hardbody Black and Copper Springer Front End

15 answered questions

$608.40

-

PLEASE EMAIL FOR AVAILABILITY

Riser Handlebar Adapter

Converts the 4.75″ Bolt Pattern to The Standard Harley 3.5″ Bolt Pattern

None Chrome Riser Adapter +$99.99 Black Riser Adapter +$89.99
Fender Mounts

Clamp-on Fender Mount For Lightweight Fender

None Black 1" Springer Fender Mounts 35317 +$84.95 Chrome 1" Springer Fender Mounts 35316 +$109.95
Usually Ships Within 4 - 4 Business Days
SKU: HARDBODY-COPPER-SPRINGER Brand: Mid-USA

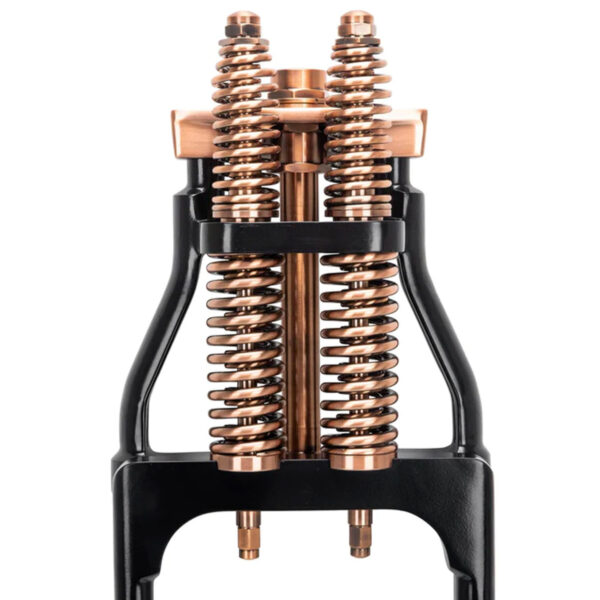

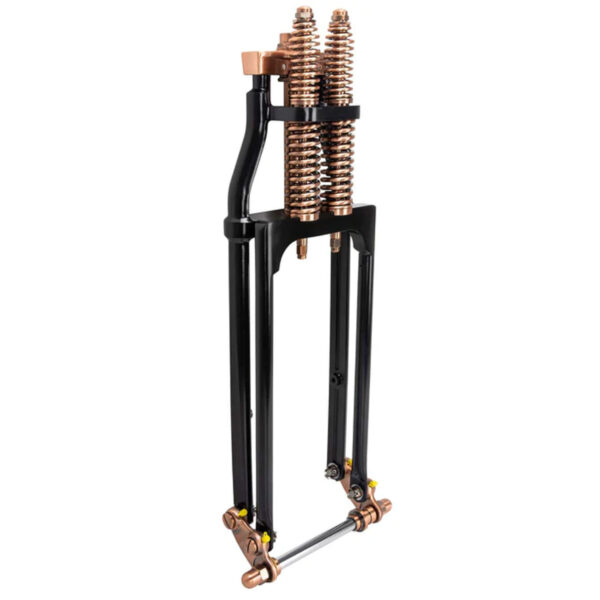

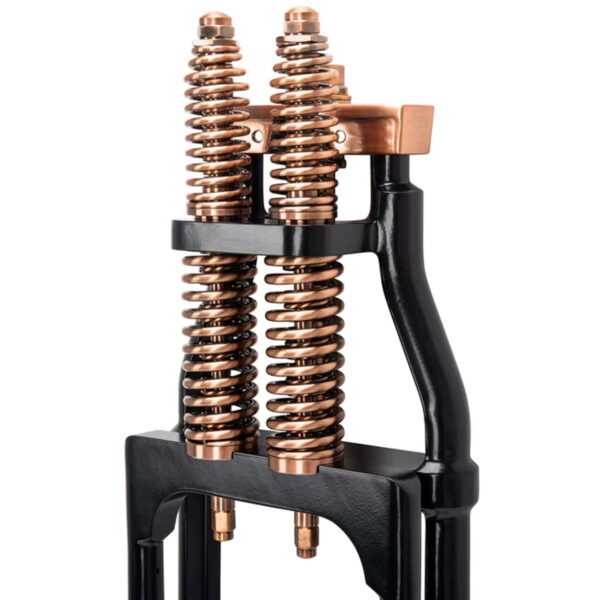

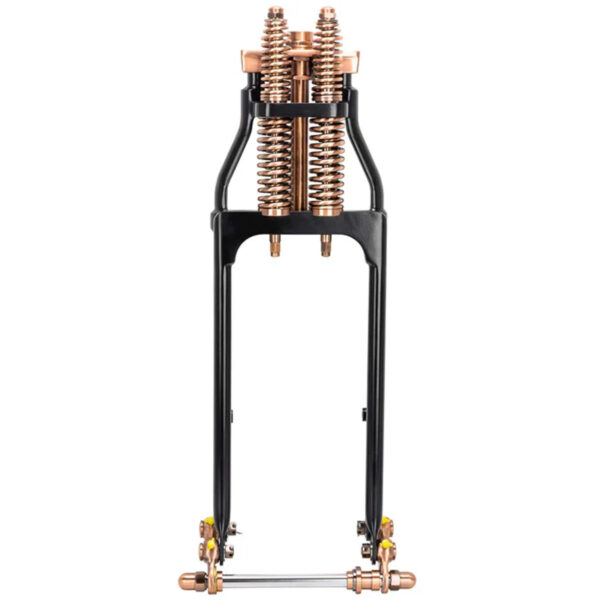

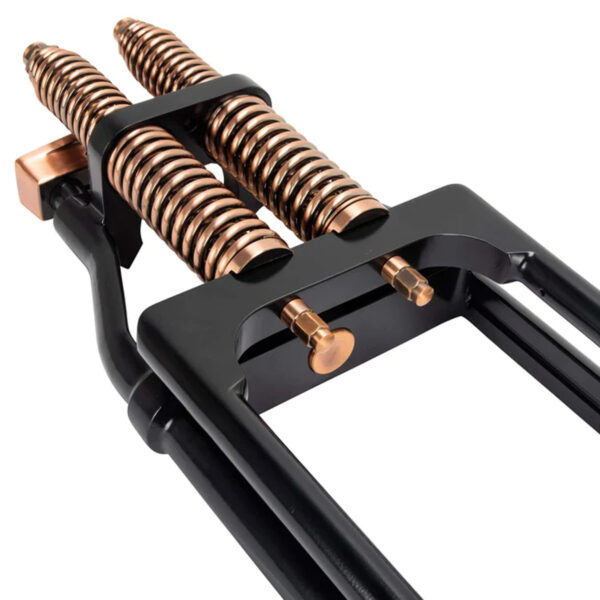

Hardbody Black and Copper Springer Front End

  • Stock length: 24″ from the top of the bottom tree to the center of the axle (Comparable to FXST front end)
  • Forged rockers for superior strength with grease zerk fittings
  • Fully assembled with a forged in-line top bracket
  • 1″ OD Steering stem designed for Timken-type bearings
  • 1″ OD Front legs
  • The rear legs are 1 piece and include brake mounts
  • Riser mounts are 4-3/4″ on center and 1/2-20 threads
  • Includes 3/4″ axle with spacers
  • Length between rear legs: 8″
  • Length between rockers: 9.25″

*Will not fit 2004-22 Sportster and 1999-2017 Dyna FXD models

  • Harley Davidson Big Twins from 1949-2017 (Excluding 1991-2017 Dyna)
  • Harley Davidson Sportster models from 1952-2003 (1952-1981 requires a 7/8"to 1" neck cup conversion kit)
Weight N/A
Dimensions N/A
Fork Length

, , ,

Reviews

There are no reviews yet

Be the first to review “Hardbody Black and Copper Springer Front End”

Your email address will not be published. Required fields are marked *

Q & A

Ask a question
Will this fit a 2020 scout bobber ? Dennis Sander asked on July 3, 2024

No, this will not fit.

 Joe Skinner answered on July 4, 2024 store manager
(0) (0)
Add an answer
I have a question. My 91 soft tail is lowered 2 inches, all the way around if I ordered the under 2 Stock Springer front end. Will that be equivalent to what I have now Marc Bachicha asked on May 26, 2024

The 2 under should fit nicely. It's always a good idea to take some measurements and compare them to the the ones shown here.

 Joe Skinner answered on May 27, 2024 store manager
(0) (0)
Add an answer
Will these fit an 85 Harley Fatbob? Bobby asked on May 11, 2024

Yes, this will fit.

 Joe Skinner answered on May 13, 2024 store manager
(1) (0)
Add an answer
Would any of the sizes fit a 2018 Triumph Bonneville Bobber? Lelio Ravagnani asked on February 8, 2024

We are not positive if it will fit. You need a 7" neck length with bearings installed and it uses a 1" stem.

 Joe Skinner answered on February 9, 2024 store manager
(0) (0)
Add an answer
Will this fit on a 98 sportster? Matthew chaney asked on January 25, 2024

Yes, this will fit sportster models through 2003.

 Joe Skinner answered on January 25, 2024 store manager
(0) (0)
Add an answer
