Exile Sprocket Brake Caliper Kit

$699.99$749.99

Clear
Usually Ships Within 1 - 3 Business Days
SKU: EXILE-SPROCKET-BRAKE Categories: , , Brand:

Description

EXILE SPROCKET BRAKE CALIPER KIT

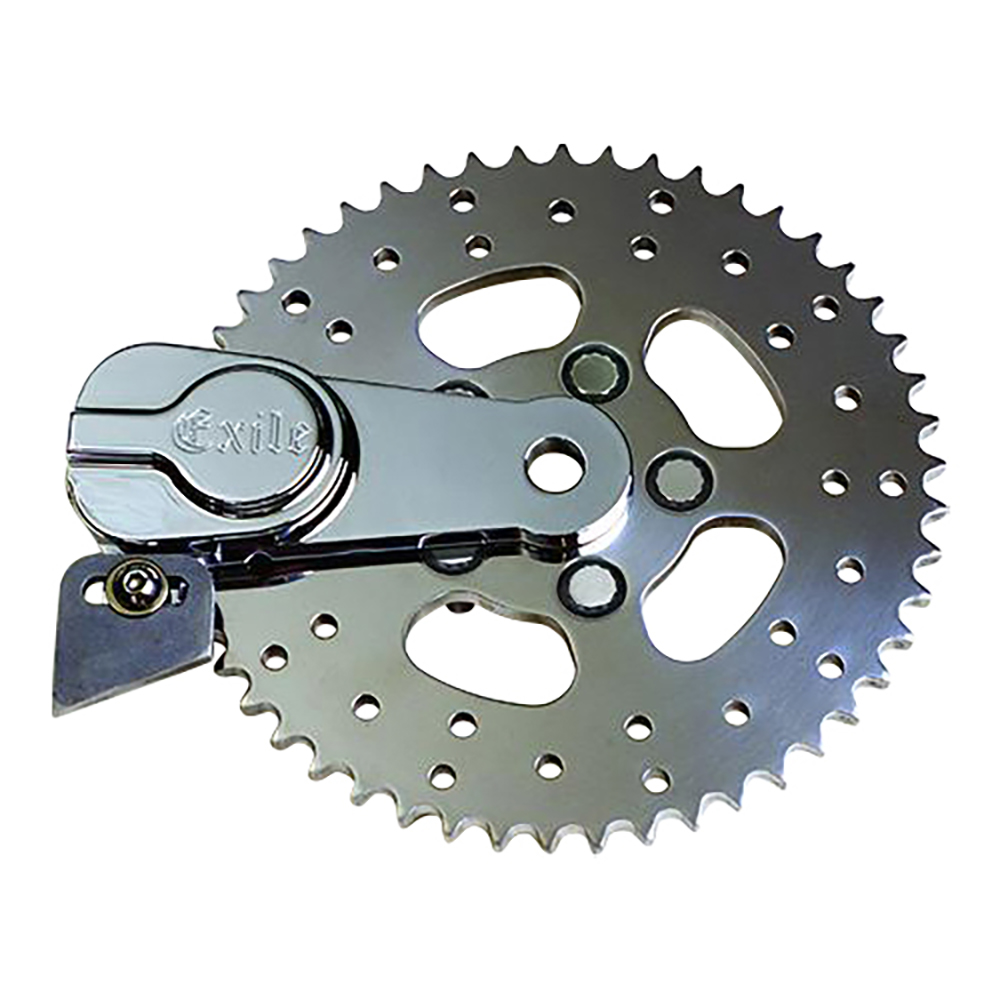

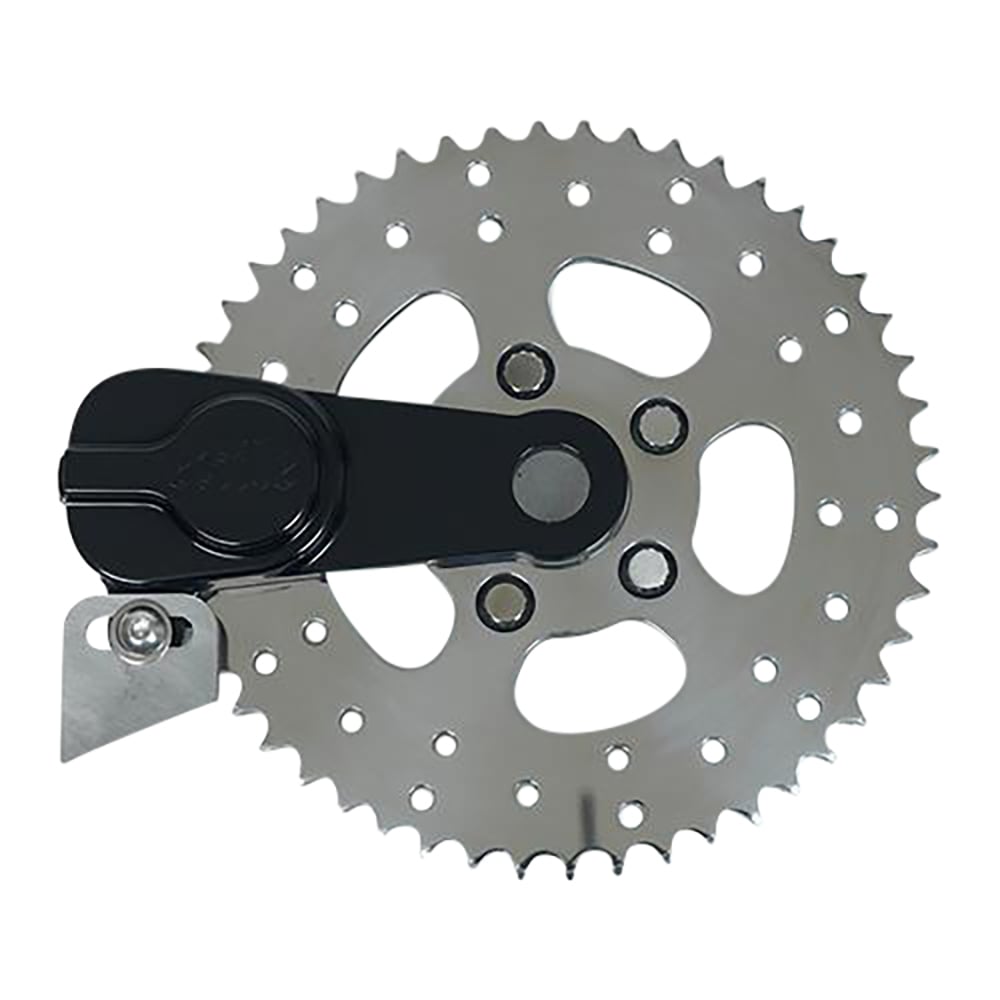

THE SPROCKET BRAKE KIT IS A SIGNATURE ITEM ON ALL EXILE BIKES. THE REAR BRAKE AND FINAL DRIVE SPROCKET ARE COMBINED INTO ONE GREAT-LOOKING UNIT, CLEANING UP THE REAR WHEEL COMPLETELY. THE POLISHED STAINLESS STEEL SPROCKET/ROTOR (SPROTOR) IS COMBINED WITH A SLICK TWO-PISTON BILLET ALUMINUM CALIPER – AVAILABLE CALIPER FINISHES ARE POLISHED-ALUMINUM, BLACK ANODIZED OR CHROME.

ALTHOUGH DESIGNED PRIMARILY FOR USE ON RIGID AND SOFTAIL APPLICATIONS, WE ALSO USE THE SPROCKET BRAKE SUCCESSFULLY WITH TRADITIONAL SWING-ARMS ON BIKES SUCH AS DYNAS. THE FOLLOWING INFORMATION MAY HELP YOU DECIDE IF OUR KIT WILL WORK IN YOUR APPLICATION. DIMENSION FROM THE OUTER FACE OF THE SPROCKET TO THE OUTER FACE OF THE CALIPER IS 1.2″. CALIPER ‘BODY’ MEASURES 2.9″ BY 3.6″ AND IS 2.55″ FROM FRONT TO BACK.

ALL CALIPERS ARE SUPPLIED WITH A BUSHING ALLOWING SPROCKET BRAKE KIT TO BE USED WITH 3/4″ AND 1″ /25MM AXLES. THE EXILE SPROCKET BRAKE USES READILY AVAILABLE SEALS AND FA76 BRAKE-PADS.

  • STANDARD HARLEY BOLT PATTERN: 5 X 3.25”
  • 50 TOOTH SPROCKET (10.2″ DIAMETER) USES A 530 CHAIN
  • SPROCKET/ROTOR THICKNESS: .35″
  • BOLT HOLE SIZE: .469″
  • CENTER HOLE: 2.23″ (ALSO SUPPLIED WITH A SPACER TO REDUCE TO 1.98″)
