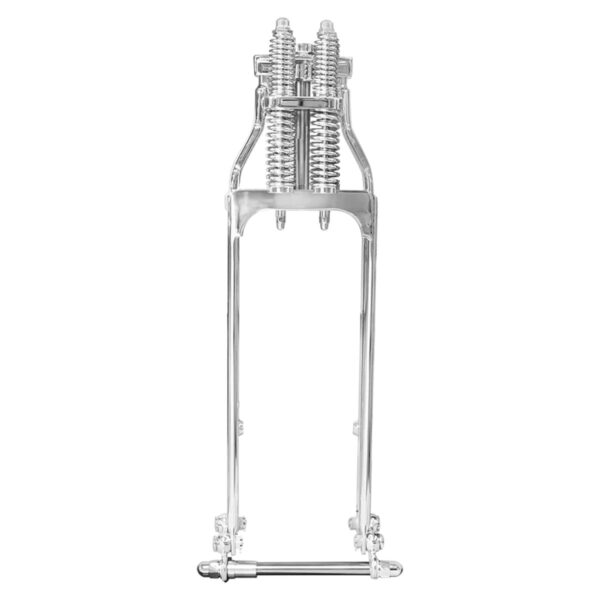

Chrome Wide Springer Front End – DNA Style Forks
Achieve the authentic chopper look with this Chrome Wide Springer Front End. Widely known as the “DNA Springer”, this fork is the industry standard for reliable, vintage-style suspension. Manufactured by Drag Specialties, it features high-quality chrome plating and heavy-duty construction, making it the perfect upgrade for Bobbers, Choppers, and Softail builds.
Designed with an in-line top bracket (zero rake), this fully assembled front end preserves traditional frame geometry while offering modern durability.

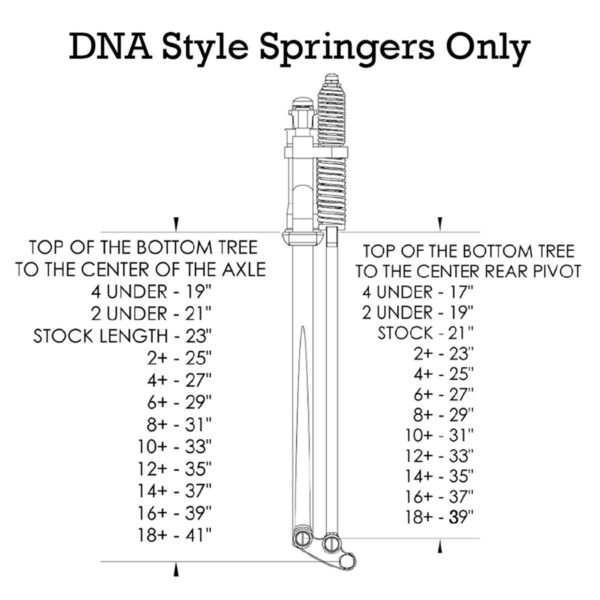

How to Measure Correctly (The “Gold Standard”)
To ensure you order the correct length, do NOT rely on “Stock” or “Over/Under” labels alone, as these vary by brand. Instead, measure your current setup or mock-up frame using this method:
- Measurement Point: Measure from the Top of the Lower Triple Tree (the flat surface where the lower bearing sits) down to the Center of the Axle.
- Why this matters: Measuring from the top of the lower tree is the most accurate method because it eliminates variables like neck length, cup height, and different bearing dust covers.
- Reference Length: A standard “Stock” length springer typically measures approximately 24″ using this method.
Key Features
- Finish: High-quality Chrome Plating on legs, trees, rockers, and springs.
- Brake Compatibility: Rear legs are threaded on both left and right sides to accommodate single or dual disc brakes.
- Construction: Heavy-duty steel components with exposed springs.
- Fully Assembled: Ready to install (check fitment notes below).
Tech Specs & Measurements
- Rocker Width: 9-1/4″ (Width between rockers where the wheel fits).
- Leg Width: 8″ (Width between the rear legs).
- Axle: Includes 3/4″ OD Axle Kit with brake mount pivot, thrust washer, and spacers.
- Steering Stem: 1″ Diameter (Designed for standard Timken® bearings).
- Riser Mounts: 4-3/4″ centers, threaded 1/2″-20. (Note: Requires adapter or springer-specific risers; stock Harley 3.5″ risers will not fit).
- Tube Diameter: 1-3/8″ Rear Legs / 1″ Front Legs
*FITMENT WARNING: Designed for custom applications. Will NOT fit 2004-2022 Sportster (XL) or 1999-2017 Dyna (FXD) models without frame modification.
The “DNA Style” Standard
The “DNA Style” refers to the specific Wide Glide width and exposed-spring design originally popularized by DNA Specialties. Today, Drag Specialties, Moto Iron (TC Bros), and Hardbody (Mid-USA) all manufacture versions of this design. They generally share the same 9-1/4″ Rocker Width, making wheels and axles interchangeable between these major brands.
Woody Myers –
Good product and fits perfect
Branden E. –
Not sure I received the DNA 8” over that I ordered. Looks and measures the same as the hardbody springer front end. Sits a little higher in the front than I was looking for and came in a gloss black. Truth is, still looks sick! Didn’t bother to contact customer support. I’ve ordered in the past, and plan on ordering in the future.
